High-Speed Grinding Spindles
Aided by shorter shaft lengths, these spindles from GMN USA provide the highest dynamic stiffness as well as smooth operation in cutting and high-speed grinding manufacturing processes. You get top performance even at extreme RPM speeds.

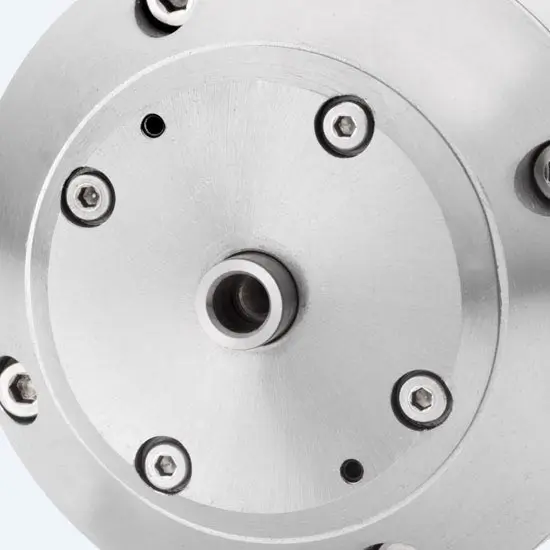

UHS Series
High-speed grinding spindles for machining applications that require small bores.
- Tool Change: Manual
Sleeve diameter: 80-100 mm
Speed: max. 250,000 rpm
Power: max. 5 kW (S6-60%)
Torque: max. 0.53 Nm (S6-60%)
Motor: Synchronous
Tool Interface: Threaded Internal Pilot
- Lubrication: Oil-Air
UHS Series
High-speed grinding spindles for machining applications that require small bores.
- Tool Change: Manual
Sleeve diameter: 80-100 mm
Speed: max. 250,000 rpm
Power: max. 5 kW (S6-60%)
Torque: max. 0.53 Nm (S6-60%)
Motor: Synchronous
Tool Interface: GMN standard with short taper
- Lubrication: Oil-Air
UHS Series
+ Standard | O Optional | X Upon Request
| UHS 80 - 200000/1 | UHS 80 - 250000/0.5 | |
|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download |
| Technical Data | ||
| Housing Ø A[mm] | 80 | 80 |
| Max. Speed nmax[min-1] | 200,000 | 250,000 |
| Bearing Diameter at the front W1 [mm] | 10 | 10 |
| Tool Interface | ||
| Designation | U 6.5/10 | U 6.5/10 |
| Face Diameter W [mm] | 10 | 10 |
| Static Stiffness | ||
| Axial Stiffness Cax [N/µm] | 14 | 7 |
| Radial Stiffness Crad [N/µm] | 13 | 12 |
| Engine Design | ||
| Max. Frequency fmax [Hz] | 3,333 | 4,167 |
| Inverter Rated Voltage U [V] | 200 | 200 |
| Performance PS1 [kW] | 0.9 | 0.45 |
| Torque MS1 [Nm] | 0.043 | 0.0172 |
| … at speed n[rpm] | 200,000 | 250,000 |
| Electricity IS1 [A] | 7.7 | 2.9 |
| Performance PS6-60% [kW] | 1 | 0.5 |
| Torque MS6-60% [Nm] | 0.0477 | 0.0191 |
| …at speed n[rpm] | 200,000 | 250,000 |
| Electricity IS6-60% [A] | 8.5 | 3.2 |
| Electrical Connection | ||
| Plug Type | B025 | B025 |
| Straight Plug-In Connection | + | + |
| Angle Plug-In Connection | X | X |
| Fixed Cable XXm | X | X |
| Coolant Through the Shaft | ||
| Low Pressure (du) | - | - |
| High Pressure (dh) | - | - |
| Sensor Technology | ||
| Rotary Encoder | - | - |
| Speed Sensor | - | - |
| Housing | ||
| Cylindrical Housing | + | + |
| Cylindrical Housing with Flange | X | X |
| Block Housing | X | X |
| Air Seal | ||
| Air Seal | + | + |
| UHS 100 - 105000/4 | UHS 100 - 120000/3.5 | UHS 100 - 90000/5 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 105,000 | 120,000 | 90,000 |
| Bearing Diameter at the front W1 [mm] | 20 | 17 | 25 |
| Tool Interface | |||
| Designation | U 12/18 | U 09/16 | U 16/23 |
| Face Diameter W [mm] | 18 | 16 | 23 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 51 | 48 | 57 |
| Radial Stiffness Crad [N/µm] | 37 | 29 | 58 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 1,750 | 2,000 | 1,500 |
| Inverter Rated Voltage U [V] | 200 / 350 | 200 / 350 | 200 / 350 |
| Performance PS1 [kW] | 3.5 | 3 | 4.4 |
| Torque MS1 [Nm] | 0.318 | 0.239 | 0.467 |
| … at speed n[rpm] | 105,000 | 120,000 | 90,000 |
| Electricity IS1 [A] | 14 / 7.9 | 14 / 8.2 | 17 / 9.7 |
| Performance PS6-60% [kW] | 4 | 3.5 | 5 |
| Torque MS6-60% [Nm] | 0.364 | 0.279 | 0.531 |
| …at speed n[rpm] | 105,000 | 120,000 | 90,000 |
| Electricity IS6-60% [A] | 16 / 9 | 17 / 9.5 | 19 / 11 |
| Electrical Connection | |||
| Plug Type | B040 | B040 | B040 |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | O | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | O | O | O |
| High Pressure (dh) | - | - | - |
| Sensor Technology | |||
| Rotary Encoder | - | - | - |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | O | O | O |

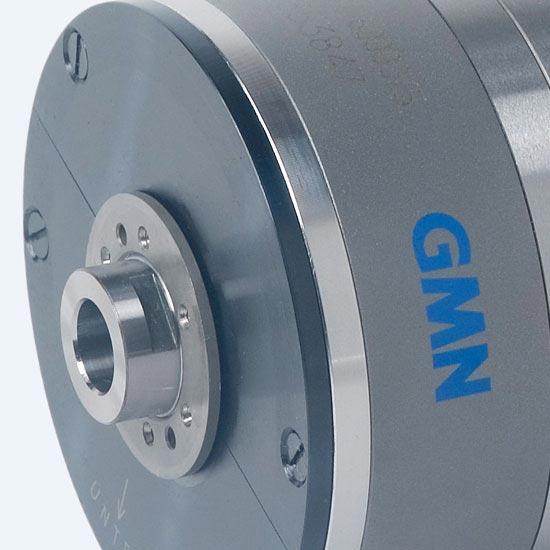

HSX Series
High-speed and high-performance grinding spindles for a variety of grinding operations.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 105,000 rpm
Power: max. 35 kW (S6-60%)
Torque: max. 29.5 Nm (S6-60%)
Motor: asynchronous
Tool Interface: Threaded Internal Pilot
- Lubrication: Oil-Air
HSX Series
High-speed and high-performance grinding spindles for a variety of grinding operations.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 105,000 rpm
Power: max. 35 kW (S6-60%)
Torque: max. 29.5 Nm (S6-60%)
Motor: asynchronous
Tool Interface: GMN standard with fitting bore
- Lubrication: Oil-Air
HSX Series
+ Standard | O Optional | X Upon Request
| HSX 100 - 105000/2 | HSX 100 - 60000/5 | HSX 100 - 75000/5 | HSX 100 - 90000/3 | |||||
|---|---|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | ||||
| Technical Data | ||||||||
| Housing Ø A[mm] | 100 | 100 | 100 | 100 | ||||
| Max. Speed nmax[min-1] | 105,000 | 60,000 | 75,000 | 90,000 | ||||
| Bearing Diameter at the front W1 [mm] | 15 | 25 | 20 | 17 | ||||
| Tool Interface | ||||||||
| Designation | D 08/14 | D 14/23 | D 10/18 | D 09/16 | ||||
| Face Diameter W [mm] | 14 | 23 | 18 | 16 | ||||
| Static Stiffness | ||||||||
| Axial Stiffness Cax [N/µm] | 26 | 53 | 48 | 36 | ||||
| Radial Stiffness Crad [N/µm] | 29 | 53 | 46 | 33 | ||||
| Engine Design | ||||||||
| Max. Frequency fmax [Hz] | 1750 | 1000 | 1250 | 1500 | ||||
| Inverter Rated Voltage U [V] | 200 / 350 | 200 / 350 | 200 / 350 | 200 / 350 | ||||
| Performance PS1 [kW] | 1.7 | 4.2 | 4.2 | 2.5 | ||||
| Torque MS1 [Nm] | 0.155 | 0.668 | 0.535 | 0.265 | ||||
| … at speed n[rpm] | 105,000 | 60,000 | 75,000 | 90,000 | ||||
| Electricity IS1 [A] | 8.5 / 5 | 18 / 11 | 18 / 11 | 13 / 7.5 | ||||
| Performance PS6-60% [kW] | 2 | 5 | 5 | 3 | ||||
| Torque MS6-60% [Nm] | 0.182 | 0.796 | 0.637 | 0.318 | ||||
| …at speed n[rpm] | 105,000 | 60,000 | 75,000 | 90,000 | ||||
| Electricity IS6-60% [k[A] | 11 / 6.5 | 23 / 13 | 23 / 13 | 16 / 9 | ||||
| Electrical Connection | ||||||||
| Plug Type | GA | GA | GA | GA | ||||
| Straight Plug-In Connection | + | + | + | + | ||||
| Angle Plug-In Connection | O | O | O | O | ||||
| Fixed Cable XXm | O | O | O | O | ||||
| Coolant Through the Shaft | ||||||||
| Low Pressure (du) | O | O | O | O | ||||
| High Pressure (dh) | - | - | - | - | ||||
| Sensor Technology | ||||||||
| Rotary Encoder | + | + | + | + | ||||
| Speed Sensor | O | O | O | O | ||||
| Housing | ||||||||
| Cylindrical Sleeve | + | + | + | + | ||||
| Cylindrical Sleeve with Flange | O | O | O | O | ||||
| Block Housing | X | X | X | X | ||||
| Air Seal | ||||||||
| Air Seal | O | O | O | O | ||||
| HSX 120 - 30000/13 | HSX 120 - 42000/12 | HSX 120 - 51000/12 | HSX 120 - 60000/7 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 30,000 | 42,000 | 51,000 | 60,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 40 | 30 | 25 |
| Tool Interface | ||||
| Designation | D 28/43 | D 22/38 | D 16/28 | D 14/23 |
| Face Diameter W [mm] | 43 | 38 | 28 | 23 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 98 | 90 | 70 | 54 |
| Radial Stiffness Crad [N/µm] | 131 | 121 | 102 | 57 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 1500 | 1400 | 1700 | 1000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 13 | 12 | 12 | 7 |
| Torque MS1 [Nm] | 5.84 | 3.5 | 3.5 | 0.955 |
| … at speed n[rpm] | 18,000 | 30,000 | 30,000 | 60,000 |
| Electricity IS1 [A] | 72 / 41 /31 | 63 / 36 / 27 | 63 / 36 / 27 | 28 / 16 / 12 |
| Performance PS6-60% [kW] | 13 | 12 | 12 | 7 |
| Torque MS6-60% [Nm] | 6.9 | 3.82 | 3.82 | 1.11 |
| …at speed n[rpm] | 18,000 | 30,000 | 30,000 | 60,000 |
| Electricity IS6-60% [k[A] | 84 / 48 / 37 | 67 / 38 / 29 | 67 / 38 / 29 | 32 / 18 / 14 |
| Electrical Connection | ||||
| Plug Type | MAC / GA | MAC / GA | MAC / GA | MAC / GA |
| Straight Plug-In Connection | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O |
| Fixed Cable XXm | O | O | O | O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | O | O | O | O |
| High Pressure (dh) | X | X | - | - |
| Sensor Technology | ||||
| Rotary Encoder | X | X | X | X |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Sleeve | + | + | + | + |
| Cylindrical Sleeve with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | O | O | O | O |
| HSX 150 - 24000/17 | HSX 150 - 24000/23 | HSX 150 - 30000/16 | HSX 150 - 30000/23 | HSX 150 - 42000/11 | HSX 150 - 42000/16 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 24,000 | 24,000 | 30,000 | 30,000 | 42,000 | 42,000 |
| Bearing Diameter at the front W1 [mm] | 65 | 65 | 55 | 55 | 40 | 40 |
| Tool Interface | ||||||
| Designation | D 36/63 | D 36/63 | D 32/53 | D 32/53 | D 22/38 | D 22/38 |
| Face Diameter W [mm] | 63 | 63 | 53 | 53 | 38 | 38 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 130 | 130 | 111 | 111 | 90 | 90 |
| Radial Stiffness Crad [N/µm] | 147 | 147 | 177 | 177 | 147 | 147 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 800 | 800 | 1000 | 1000 | 1400 | 1400 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 14 | 18 | 14 | 18 | 9.5 | 14 |
| Torque MS1 [Nm] | 12.2 | 9.55 | 9.9 | 9.55 | 5.04 | 4.95 |
| … at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 18,000 | 27,000 |
| Electricity IS1 [A] | 65 / 37 / 28 | 86 / 49 / 37 | 63 / 36 / 27 | 86 / 49 / 37 | 47 / 27 / 21 | 86 / 49 / 37 |
| Performance PS6-60% [kW] | 17 | 23 | 16 | 23 | 11 | 16 |
| Torque MS6-60% [Nm] | 14.8 | 12.2 | 11.3 | 12.2 | 5.84 | 5.66 |
| …at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 18,000 | 27,000 |
| Electricity IS6-60% [k[A] | 79 / 45 / 34 | 110 / 63 / 48 | 70 / 40 / 30 | 110 / 63 / 48 | 54 / 31 / 24 | 102 / 58 / 44 |
| Electrical Connection | ||||||
| Plug Type | MAC / GA | MAC / GA | MAC / GA | MAC / GA | MAC / GA | MAC / GA |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | X | X | X | X | X | X |
| High Pressure (dh) | X | X | X | X | X | X |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | X | X |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Sleeve | + | + | + | + | + | + |
| Cylindrical Sleeve with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |
| HSX 170 - 18000/23 | HSX 170 - 18000/34 | HSX 170 - 24000/21 | HSX 170 - 24000/35 | HSX 170 - 30000/21 | HSX 170 - 30000/35 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Max. Speed nmax[min-1] | 18,000 | 18,000 | 24,000 | 24,000 | 30,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 70 | 70 | 65 | 65 | 55 | 55 |
| Tool Interface | ||||||
| Designation | D 36/38 | D 36/38 | D 36/63 | D 36/63 | D 32/53 | D 32/53 |
| Face Diameter W [mm] | 68 | 68 | 63 | 63 | 53 | 53 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 135 | 135 | 130 | 130 | 111 | 111 |
| Radial Stiffness Crad [N/µm] | 262 | 262 | 231 | 231 | 203 | 203 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 600 | 600 | 800 | 800 | 1000 | 1000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 20 | 29 | 19 | 32 | 19 | 32 |
| Torque MS1 [Nm] | 25.5 | 25.2 | 20.2 | 20.4 | 20.2 | 20.4 |
| … at speed n[rpm] | 7,500 | 11,000 | 9,000 | 15,000 | 9,000 | 15,000 |
| Electricity IS1 [A] | 89 / 51 / 39 | 117 / 67 / 51 | 82 / 47 / 36 | 140 / 80 / 61 | 82 / 47 / 36 | 140 / 80 / 61 |
| Performance PS6-60% [kW] | 23 | 34 | 21 | 35 | 21 | 35 |
| Torque MS6-60% [Nm] | 29.3 | 29.5 | 22.3 | 22.3 | 22.3 | 22.3 |
| …at speed n[rpm] | 7,500 | 11,000 | 9,000 | 15,000 | 9,000 | 15,000 |
| Electricity IS6-60% [k[A] | 102 / 58 / 44 | 137 / 78 / 59 | 93 / 53 / 40 | 151 / 86 / 65 | 93 / 53 / 40 | 151 / 86 / 65 |
| Electrical Connection | ||||||
| Plug Type | D350 / MAC | D350 / MAC | MAC | D350 / MAC | MAC | D350 / MAC |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Pug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | - | - | - | - | - | - |
| High Pressure (dh) | X | X | X | X | X | X |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | X | X |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Sleeve | + | + | + | + | + | + |
| Cylindrical Sleeve with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |

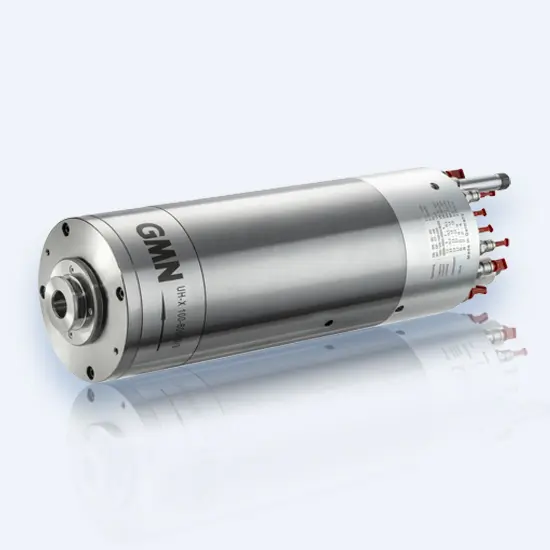

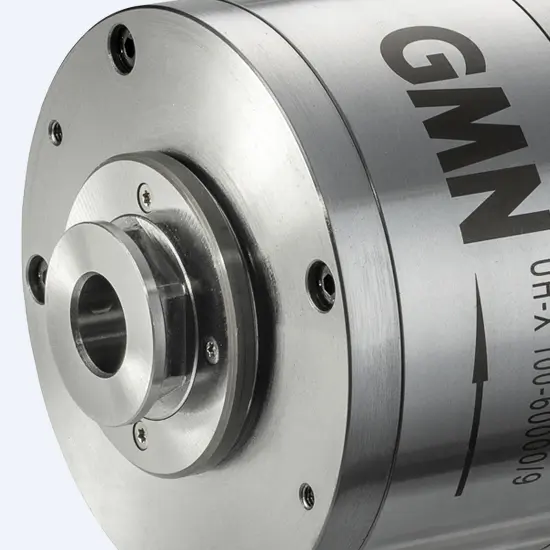

UH-X Series
GMN’s new UH Series spindle offers higher efficiency, lower vibration and noise, and larger bearing diameters. These high-speed models are equipped with the IDEA-4S interface, enabling continuous data capture via numerous sensors.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 120,000 rpm
Power: max. 32 kW (S1)
Torque: max. 36.8 Nm (S1)
Motor: Synchronous
- Tool Interface: GMN standard, HSK C
- Lubrication: Oil-Air
UH-X Series
GMN’s new UH Series spindle offers higher efficiency, lower vibration and noise, and larger bearing diameters. These high-speed models are equipped with the IDEA-4S interface, enabling continuous data capture via numerous sensors.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 120,000 rpm
Power: max. 32 kW (S1)
Torque: max. 36.8 Nm (S1)
Motor: Synchronous
- Tool Interface: GMN standard, HSK C
- Lubrication: Oil-Air
UH-X Series
** 200 V available upon request
| UH-x 100 - 120000/1.7 | UH-X 100 - 105000/3 | UH-X 100 - 90000/4 | UH-X 100 - 75000/5 | UH-X 100 - 60000/9 | UH-X 100 - 45000/9 | |
|---|---|---|---|---|---|---|
| Technical Data | ||||||
| Housing Ø A[mm] | 100 | 1000 | 100 | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 120,000 | 105,000 | 90,000 | 75,000 | 60,000 | 45,000 |
| Bearing Diameter at the front W1 [mm] | 17 | 20 | 25 | 30 | 35 | 45 |
| Tool Interface | ||||||
| Designation | D 09/16 | D 10/18 | D 14/23 | D 16/28 | D 16/33 | D 28/43 |
| Face Diameter W [mm] | 16 | 18 | 23 | 28 | 33 | 43 |
| Engine Design | ||||||
| Motor | 350 V | 350 V | 200 V** / 400 V | 200 V** / 400 V | 200 V** / 400 V | 400 V |
| Max. Frequency fmax [Hz] | 2,000 | 1,750 | 1,500 | 1,250 | 2,000 | 1,500 |
| Nominal Converter Voltage [V] | 350 | 350 | 200** / 396 | 200** / 400 | 200** / 400 | 400 |
| Power PS1 [kW] | 1.7 | 3 | 4 | 5 | 9 | 9 |
| Torque MS1 [Nm] | 0.135 | 0.27 | 0.5 | 0.76 | 2.4 | 3.2 |
| … at speed n[rpm] | 120,000 | 105,000 | 77,000 | 63,000 | 36,000 | 27,000 |
| Electricity IS1 [A] | 4.3 | 6.2 | 15** / 7.5 | 19** / 9.2 | 46** / 24 | 24 |
| Power PS6-60% [kW] | 2 | 3.5 | 4.6 | 5.8 | 10.3 | 10.3 |
| Torque MS6-60% [Nm] | 0.156 | 0.31 | 0.57 | 0.87 | 2.7 | 3.7 |
| …at speed n[rpm] | 120,000 | 105,000 | 77,000 | 63,000 | 36,000 | 27,000 |
| Electricity IS6-60% [k[A] | 4.9 | 7.1 | 17** / 8.6 | 22** / 11 | 54** / 28 | 27 |
| UH-X 120 - 75000/10 | UH-X 120 - 60000/8 | UH-X 120 - 60000/11 | UH-X 120 - 45000/10 | UH-X 120 - 30000/10 | |
|---|---|---|---|---|---|
| Technical Data | |||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 75,000 | 60,000 | 60,000 | 45,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 30 | 35 | 35 | 45 | 55 |
| Tool Interface | |||||
| Designation | D 16/28 | D 16/33 | D 16/33 | D 28/43 | D 32/53 |
| Face Diameter W [mm] | 28 | 33 | 33 | 43 | 53 |
| Engine Design | |||||
| Motor | 200 V ** / 420 V | 200 V ** / 420 V | 200 V ** / 400 V | 200 V ** / 425 V | 200 V ** / 400 V |
| Max. Frequency fmax [Hz] | 1,250 | 1,000 | 2,000 | 1,500 | 1,000 |
| Nominal Converter Voltage [V] | 200** / 412 | 200** / 412 | 200** / 288 | 200** / 425 | 200** / 400 |
| Power PS1 [kW] | 10 | 8 | 11 | 10 | 10 |
| Torque MS1 [Nm] | 1.3 | 1.3 | 3.6 | 4.8 | 7.9 |
| … at speed n[rpm] | 75,000 | 60,000 | 29,000 | 19,500 | 12,000 |
| Electricity IS1 [A] | 39** / 16 | 38** / 16 | 76** / 49 | 52** / 26 | 54** / 27 |
| Power PS6-60% [kW] | 11.5 | 11.5 | 12.6 | 11.3 | 11.5 |
| Torque MS6-60% [Nm] | 1.5 | 1.5 | 4.2 | 5.5 | 9.1 |
| …at speed n[rpm] | 75,000 | 60,000 | 29,000 | 19,500 | 12,000 |
| Electricity IS6-60% [k[A] | 45** / 18 | 44** / 18 | 87** / 56 | 62** / 31 | 65** / 33 |
| UH-X 150 - 50000/18 | UH-X 150 - 40000/20 | UH-X 150 - 30000/25 | |
|---|---|---|---|
| Technical Data | |||
| Housing Ø A[mm] | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 50,000 | 40,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 55 | 65 |
| Tool Interface | |||
| Designation | D 28/40 | D 32/53 | D 36/63 |
| Face Diameter W [mm] | 40 | 53 | 63 |
| Engine Design | |||
| Motor | 200 V ** / 400 V | 400 V | 400 V |
| Max. Frequency fmax [Hz] | 834 | 1,334 | 1,000 |
| Nominal Converter Voltage [V] | 200** / 361 | 400 | 400 |
| Power PS1 [kW] | 18 | 20 | 25 |
| Torque MS1 [Nm] | 4 | 13.5 | 17 |
| … at speed n[rpm] | 43,000 | 14,000 | 14,000 |
| Electricity IS1 [A] | 73** / 36 | 72 | 78 |
| Power PS6-60% [kW] | 19.8 | 23 | 28.8 |
| Torque MS6-60% [Nm] | 4.4 | 15.5 | 19.6 |
| …at speed n[rpm] | 43,000 | 14,000 | 14,000 |
| Electricity IS6-60% [k[A] | 80** / 40 | 88 | 98 |
| UH-X 170 - 40000/32 | UH-X 170 - 30000/17 | UH-X 170 - 20000/17 | |
|---|---|---|---|
| Technical Data | |||
| Housing Ø A[mm] | 170 | 170 | 170 |
| Max. Speed nmax[min-1] | 40,000 | 30,000 | 20,000 |
| Bearing Diameter at the front W1 [mm] | 55 | 65 | 70 |
| Tool Interface | |||
| Designation | D 32/53 | D 36/63 | D 36/68 |
| Face Diameter W [mm] | 53 | 63 | 68 |
| Engine Design | |||
| Motor | 200 V ** / 500 V | 450 V | 400 V |
| Max. Frequency fmax [Hz] | 1,334 | 1,000 | 667 |
| Nominal Converter Voltage [V] | 200** / 496 | 403 | 400 |
| Power PS1 [kW] | 32 | 17 | 17 |
| Torque MS1 [Nm] | 16.1 | 23.1 | 36.8 |
| … at speed n[rpm] | 19,000 | 7,000 | 4,410 |
| Electricity IS1 [A] | 167** / 51 | 44 | 30 |
| Power PS6-60% [kW] | 36.8 | 19.6 | 19.6 |
| Torque MS6-60% [Nm] | 18.5 | 26.6 | 42.3 |
| …at speed n[rpm] | 19,000 | 7,000 | 4,410 |
| Electricity IS6-60% [k[A] | 192** / 64 | 54 | 35 |

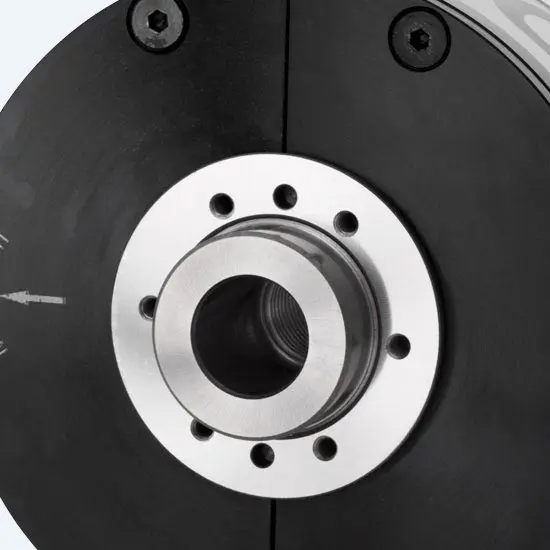

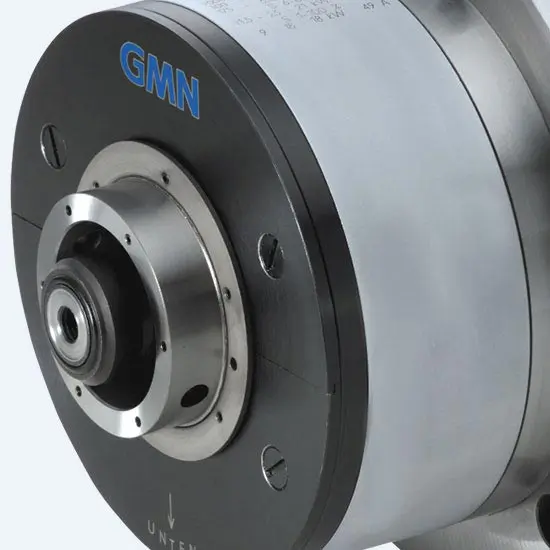

HV-X Series
High-performance grinding spindles for applications the require high rigidity and power.
- Tool Change: Manual
Sleeve diameter: 100-150 mm
Speed: max. 105,000 rpm
Power: max. 37 kW (S6-60%)
Torque: max. 16.8 Nm (S6-60%)
Motor: asynchronous
Tool Interface: Threaded Internal Pilot
- Lubrication: Oil-Air
HV-X Series
High-performance grinding spindles for applications the require high rigidity and power.
- Tool Change: Manual
Sleeve diameter: 100-150 mm
Speed: max. 105,000 rpm
Power: max. 37 kW (S6-60%)
Torque: max. 16.8 Nm (S6-60%)
Motor: asynchronous
Tool Interface: GMN standard with fitting bore
- Lubrication: Oil-Air
HV-X Series
+ Standard | O Optional | X Upon Request
| HV-X 100 - 105000/2 | HV-X 100 - 30000/9 | HV-X 100 - 45000/9 | HV-X 100 - 60000/9 | HV-X 100 - 75000/5 | HV-X 100 - 90000/3 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 105,000 | 30,000 | 45,000 | 60,000 | 75,000 | 90,000 |
| Bearing Diameter at the front W1 [mm] | 17 | 45 | 40 | 30 | 25 | 20 |
| Tool Interface | ||||||
| Designation | D 36/63 | D 32/53 | D 32/53 | D 14/23 | D 10/18 | |
| Face Diameter W [mm] | 63 | 63 | 53 | 53 | 23 | 18 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 130 | 130 | 111 | 111 | 53 | 37 |
| Radial Stiffness Crad [N/µm] | 147 | 147 | 177 | 177 | 56 | 40 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 800 | 800 | 1000 | 1000 | 1250 | 1500 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 14 | 18 | 14 | 18 | 4 | 2.5 |
| Torque MS1 [Nm] | 12.2 | 9.55 | 9.9 | 9.55 | 0.509 | 0.256 |
| … at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 75,000 | 90,000 |
| Electricity IS1 [A] | 65 / 37 / 28 | 86 / 49 / 37 | 63 / 36 / 27 | 86 / 49 / 37 | 18 / 11 / 8 | 13 / 7.5 / 5.7 |
| Performance PS6-60% [kW] | 17 | 23 | 16 | 23 | 5 | 3 |
| Torque MS6-60% [Nm] | 14.8 | 12.2 | 11.3 | 12.2 | 0.637 | 0.318 |
| …at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 75,000 | 90,000 |
| Electricity IS6-60% [k[A] | 79 / 45 / 34 | 110 / 63 / 48 | 70 / 40 / 30 | 110 / 63 / 48 | 23 / 13 / 9.9 | 16 / 9 / 6.8 |
| Electrical Connection | ||||||
| Plug Type | MAC / GA | MAC / GA | MAC / GA | MAC / GA | GA | GA |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | X | X | X | X | O | O |
| High Pressure (dh) | X | X | X | X | - | - |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | - | - |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Sleeve | + | + | + | + | + | + |
| Cylindrical Sleeve with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |
| HV-X 120 - 30000/18 | HV-X 120 - 45000/18 | HV-X 120 - 60000/12 | HV-X 120 - 60000/13 | HV-X 120 - 75000/7 | |
|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 30,000 | 45,000 | 60,000 | 60,000 | 75,000 |
| Bearing Diameter at the front W1 [mm] | 55 | 45 | 30 | 30 | 25 |
| Tool Interface | |||||
| Designation | D 32/53 | D 28/43 | D 16/28 | D 16/28 | D 14/23 |
| Face Diameter W [mm] | 53 | 43 | 28 | 28 | 23 |
| Static Stiffness | |||||
| Axial Stiffness Cax [N/µm] | 99 | 91 | 69 | 69 | 54 |
| Radial Stiffness Crad [N/µm] | 145 | 125 | 97 | 97 | 68 |
| Engine Design | |||||
| Max. Frequency fmax [Hz] | 1000 | 1500 | 1000 | 2000 | 1250 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 15 | 15 | 10.5 | 11 | 6 |
| Torque MS1 [Nm] | 5.97 | 4.77 | 1.97 | 3.5 | 0.764 |
| … at speed n[rpm] | 24,000 | 30,000 | 51,000 | 30,000 | 75,000 |
| Electricity IS1 [A] | 72 / 41 / 31 | 72 / 41 / 31 | 44 25 / 19 | 58 / 33 / 25 | 32 / 18 / 14 |
| Performance PS6-60% [kW] | 18 | 18 | 12 | 13 | 7 |
| Torque MS6-60% [Nm] | 7.16 | 5.73 | 2.25 | 4.14 | 0.891 |
| …at speed n[rpm] | 24,000 | 30,000 | 51,000 | 30,000 | 75,000 |
| Electricity IS6-60% [A] | 89 / 51 / 39 | 89 / 51 / 39 | 51 / 29 / 22 | 65 / 37 / 28 | 42 / 24 / 18 |
| Electrical Connection | |||||
| Plug Type | MAC / GA | MAC / GA | GA | MAC / GA | GA |
| Straight Plug-In Connection | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O |
| Coolant Through the Shaft | |||||
| Low Pressure (du) | O | O | O | O | O |
| High Pressure (dh) | O | O | O | O | - |
| Sensor Technology | |||||
| Rotary Encoder | O | O | O | O | O |
| Speed Sensor | + | + | + | + | + |
| Housing | |||||
| Cylindrical Housing | + | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O | O |
| Block Housing | X | X | X | X | X |
| Air Seal | |||||
| Air Seal | O | O | O | O | O |
| HV-X 150 - 30000/26 | HV-X 150 - 30000/37 | HV-X 150 - 45000/25 | HV-X 150 - 45000/36 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 150 | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 30,000 | 30,000 | 45,000 | 45,000 |
| Bearing Diameter at the front W1 [mm] | 65 | 65 | 45 | 45 |
| Tool Interface | ||||
| Designation | D 36/63 | D 36/63 | D 28/43 | D 28/43 |
| Face Diameter W [mm] | 63 | 63 | 43 | 43 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 121 | 121 | 91 | 91 |
| Radial Stiffness Crad [N/µm] | 197 | 197 | 150 | 150 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 1000 | 1000 | 1500 | 1500 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 23 | 33 | 22 | 32 |
| Torque MS1 [Nm] | 14.6 | 15 | 10 | 10.2 |
| … at speed n[rpm] | 15,000 | 21,000 | 21,000 | 30,000 |
| Electricity IS1 [A] | 105 / 60 / 46 | 147 / 84 / 64 | 105 / 60 / 46 | 152 / 87 / 66 |
| Performance PS6-60% [kW] | 26 | 37 | 25 | 36 |
| Torque MS6-60% [Nm] | 16.6 | 16.8 | 11.4 | 11.5 |
| …at speed n[rpm] | 15,000 | 21,000 | 21,000 | 30,000 |
| Electricity IS6-60% [A] | 117 / 67 / 51 | 161 / 92 / 70 | 117 / 67 / 51 | 166 / 95 / 72 |
| Electrical Connection | ||||
| Plug Type | D350 / MAC | D350 / MAC | D350 / MAC | - / D350 / MAC |
| Straight Plug-In Connection | + | + | + | - / + |
| Angle Plug-In Connection | O | O | O | - / O |
| Fixed Cable XXm | O | O | O | + / O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | X | X | X | X |
| High Pressure (dh) | O | O | O | O |
| Sensor Technology | ||||
| Rotary Encoder | O | O | O | O |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Housing | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | O | O | O | O |
HS Series
High-speed grinding spindles for applications that require machining of small bores.
- Tool Change: Manual
Sleeve diameter: 80 mm
Speed: max. 180,000 rpm
Power: max. 1.1 kW (S6-60%)
Torque: max. 0.09 Nm (S6-60%)
Motor: Asynchronous
Tool Interface: Threaded Internal Pilot
- Lubrication: Oil-Air
HS Series
High-speed grinding spindles for applications that require machining of small bores.
- Tool Change: Manual
Sleeve diameter: 80 mm
Speed: max. 180,000 rpm
Power: max. 1.1 kW (S6-60%)
Torque: max. 0.09 Nm (S6-60%)
Motor: Asynchronous
Tool Interface: GMN standard with fitting bore
- Lubrication: Oil-Air
HS Series
+ Standard | O Optional | X Upon Request
| HS 80 / 120000/1.1 | HS 80 - 150000/0.5 | HS 80 - 180000/0.4 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 80 | 80 | 80 |
| Max. Speed nmax[min-1] | 120,000 | 150,000 | 180,000 |
| Bearing Diameter at the front W1 [mm] | 12 | 8 | 8 |
| Tool Interface | |||
| Designation | D 06/12 | D 04/08 | D 04/08 |
| Face Diameter W [mm] | 12 | 8 | 8 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 11 | 9 | 8 |
| Radial Stiffness Crad [N/µm] | 21 | 15 | 15 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 2,000 | 2,500 | 3,000 |
| Inverter Rated Voltage U [V] | 200 | 200 | 200 |
| Performance PS1 [kW] | 0.95 | 0.45 | 0.35 |
| Torque MS1 [Nm] | 0.0756 | 0.0286 | 0.0186 |
| … at speed n[rpm] | 120,000 | 150,000 | 180,000 |
| Electricity IS1 [A] | 5.4 | 2.3 | 1.8 |
| Performance PS6-60% [kW] | 1.1 | 0.5 | 0.4 |
| Torque MS6-60% [Nm] | 0.0875 | 0.0318 | 0.0212 |
| …at speed n[rpm] | 120,000 | 150,000 | 180,000 |
| Electricity IS6-60% [A] | 6.5 | 2.5 | 2 |
| Electrical Connection | |||
| Plug Type | GA | GA | GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | X | X | X |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | O | - | - |
| High Pressure (dh) | - | - | - |
| Sensor Technology | |||
| Rotary Encoder | - | - | - |
| Speed Sensor | - | - | - |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | X | X | X |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | X | X | X |

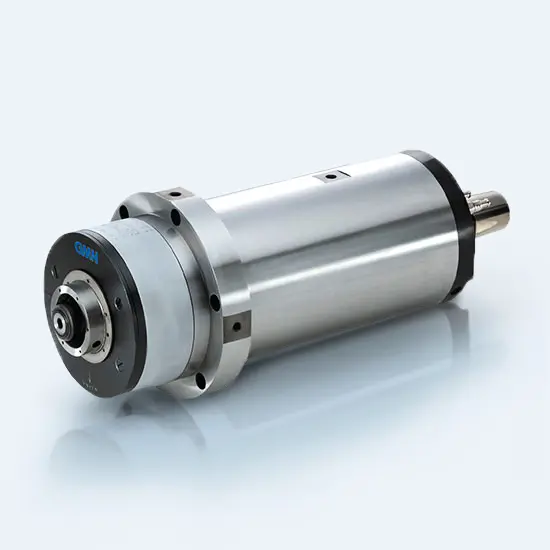

HV-P Series
High-speed spindles for grinding, milling, and drilling operations that require high rigidity and power.
- Tool Change: Manual
Sleeve diameter: 100-150 mm
Speed: max. 60,000 rpm
Power: max. 37 kW (S6-60%)
Torque: max. 16.8 Nm (S6-60%)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HV-P Series
High-speed spindles for grinding, milling, and drilling operations that require high rigidity and power.
- Tool Change: Manual
Sleeve diameter: 100-150 mm
Speed: max. 60,000 rpm
Power: max. 37 kW (S6-60%)
Torque: max. 16.8 Nm (S6-60%)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HV-P Series
+ Standard | O Optional | X Upon Request
| HV-P 100 - 30000/9 | HV-P 100 - 45000/9 | HV-P 100 - 60000/9 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 30,000 | 45,000 | 60,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 40 | 30 |
| Tool Interface | |||
| Designation | HSK-C 40 | HSK-C 32 | HSK-C 25 |
| Face Diameter W [mm] | 40 | 32 | 25 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 80 | 76 | 62 |
| Radial Stiffness Crad [N/µm] | 74 | 85 | 73 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 1,000 | 1,500 | 2,000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 7.5 | 7.5 | 7.5 |
| Torque MS1 [Nm] | 3.41 | 2.39 | 1.4 |
| … at speed n[rpm] | 21,000 | 30,000 | 51,000 |
| Electricity IS1 [A] | 49 / 28 / 21 | 18 / 42 / 24 | 42 / 24 / 18 |
| Performance PS6-60% [kW] | 9 | 9 | 9 |
| Torque MS6-60% [Nm] | 4.09 | 2.86 | 1.69 |
| …at speed n[rpm] | 21,000 | 30,000 | 51,000 |
| Electricity IS6-60% [A] | 53 / 30 / 23 | 21 / 49 / 28 | 49 / 28 / 21 |
| Electrical Connection | |||
| Plug Type | MAC / GA | GA | GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | X | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | - | - | - |
| High Pressure (dh) | - | - | - |
| Sensor Technology | |||
| Rotary Encoder | - | - | - |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | O | O | O |
| HV-P 120 - 30000/18 | HV-P 120 - 45000/18 | HV-P 120 - 60000/12 | HV-P 120 - 60000/13 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 30,000 | 45,000 | 60,000 | 60,000 |
| Bearing Diameter at the front W1 [mm] | 55 | 45 | 30 | 30 |
| Tool Interface | ||||
| Designation | HSK-C 40 | HSK-C 40 | HSK-C 25 | HSK-C 25 |
| Face Diameter W [mm] | 50 | 40 | 25 | 25 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 99 | 91 | 69 | 69 |
| Radial Stiffness Crad [N/µm] | 145 | 125 | 97 | 97 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 1,000 | 1,500 | 1,000 | 2,000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 15 | 15 | 10.5 | 11 |
| Torque MS1 [Nm] | 5.97 | 4.77 | 1.97 | 3.5 |
| … at speed n[rpm] | 24,000 | 30,000 | 51,000 | 30,000 |
| Electricity IS1 [A] | 72 / 41 / 31 | 72 / 41 / 31 | 44 / 25 / 19 | 58 / 33 / 25 |
| Performance PS6-60% [kW] | 18 | 18 | 12 | 13 |
| Torque MS6-60% [Nm] | 7.16 | 5.73 | 2.25 | 4.14 |
| …at speed n[rpm] | 24,000 | 30,000 | 51,000 | 30,000 |
| Electricity IS6-60% [A] | 89 / 51 / 39 | 89 / 51 / 39 | 51 / 29 / 22 | 65 / 37 / 28 |
| Electrical Connection | ||||
| Plug Type | MAC / GA | MAC / GA | GA | MAC / GA |
| Straight Plug-In Connection | + | + | + | + |
| Angle Plug-In Connection | O | O | O | X |
| Fixed Cable XXm | O | O | O | O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | - | - | - | - |
| High Pressure (dh) | O | O | O | O |
| Sensor Technology | ||||
| Rotary Encoder | O | O | O | O |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Housing | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | O | O | O | O |
| HV-P 150 - 30000/26 | HV-P 150 - 30000/37 | HV-P 150 - 45000/25 | HV-P 150 - 45000/36 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 150 | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 30,000 | 45,000 | 45,000 | 45,000 |
| Bearing Diameter at the front W1 [mm] | 65 | 65 | 45 | 45 |
| Tool Interface | ||||
| Designation | HSK-C 63 | HSK-C 63 | HSK-C 40 | HSK-C 40 |
| Face Diameter W [mm] | 63 | 63 | 40 | 40 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 121 | 121 | 91 | 91 |
| Radial Stiffness Crad [N/µm] | 197 | 197 | 150 | 150 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 1,000 | 1,000 | 1,500 | 1,500 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 23 | 33 | 22 | 32 |
| Torque MS1 [Nm] | 14.6 | 15 | 10 | 10.2 |
| … at speed n[rpm] | 15,000 | 21,000 | 21,000 | 30,000 |
| Electricity IS1 [A] | 105 / 60 / 46 | 147 / 84 / 64 | 105 / 60 / 46 | 152 / 87 / 66 |
| Performance PS6-60% [kW] | 26 | 37 | 25 | 36 |
| Torque MS6-60% [Nm] | 16.6 | 16.8 | 11.4 | 11.5 |
| …at speed n[rpm] | 15,000 | 21,000 | 21,000 | 30,000 |
| Electricity IS6-60% [A] | 117 / 67 / 51 | 161 / 92 / 70 | 117 / 67 / 51 | 166 / 95 / 72 |
| Electrical Connection | ||||
| Plug Type | D350 / MAC | D350 / MAC | D350 / MAC | D350 / MAC |
| Straight Plug-In Connection | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O |
| Fixed Cable XXm | O | O | O | O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | - | - | - | - |
| High Pressure (dh) | O | O | O | O |
| Sensor Technology | ||||
| Rotary Encoder | O | O | O | O |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Housing | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | O | O | O | O |

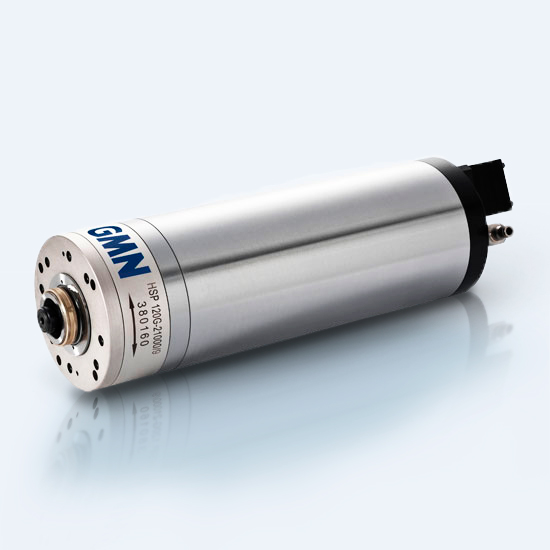

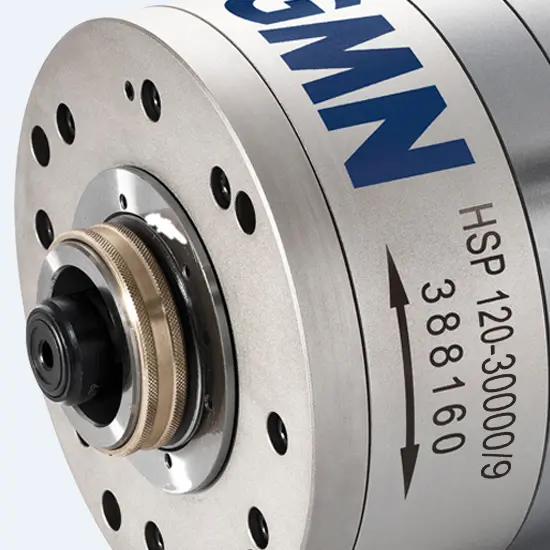

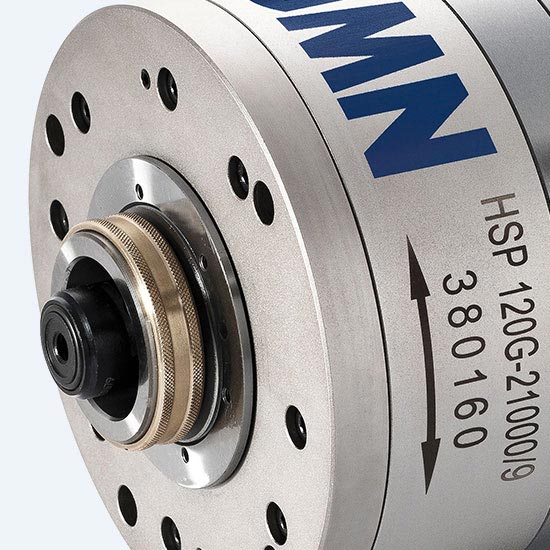

HSP Series
High-speed spindles suitable for grinding, milling, and drilling applications.
- Tool Change: Manual
Sleeve diameter: 100-230 mm
Speed: max. 51,000 rpm
Power: max. 45 kW (S1)
Torque: max. 85.3 Nm (S1)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HSP Series
High-speed spindles suitable for grinding, milling, and drilling applications.
- Tool Change: Manual
Sleeve diameter: 100-230 mm
Speed: max. 51,000 rpm
Power: max. 45 kW (S1)
Torque: max. 85.3 Nm (S1)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HSP Series
+ Standard | O Optional | X Upon Request
| HSP 100 - 42000/3 | HSP 100 - 42000/5 | HSP 100 - 51000/3 | HSP 100 - 51000/5 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 100 | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 42,000 | 42,000 | 51,000 | 51,000 |
| Bearing Diameter at the front W1 [mm] | 35 | 35 | 30 | 30 |
| Tool Interface | ||||
| Designation | HSK-C 32 | HSK-C 32 | HSK-C 25 | HSK-C 25 |
| Face Diameter W [mm] | 32 | 32 | 25 | 25 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 69 | 69 | 63 | 63 |
| Radial Stiffness Crad [N/µm] | 81 | 81 | 77 | 77 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 1,400 | 1,400 | 1,700 | 1,700 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 3 | 5 | 3 | 5 |
| Torque MS1 [Nm] | 1.36 | 1.33 | 1.36 | 1.33 |
| … at speed n[rpm] | 21,000 | 36,000 | 21,000 | 36,000 |
| Electricity IS1 [A] | 18 / 10 / 7.6 | 26 / 15 / 11 | 18 / 10 / 7.6 | 26 / 15 / 11 |
| Performance PS6-60% [kW] | 4 | 6 | 4 | 6 |
| Torque MS6-60% [Nm] | 1.59 | 1.59 | 1.59 | 1.59 |
| …at speed n[rpm] | 24,000 | 36,000 | 24,000 | 36,000 |
| Electricity IS6-60% [A] | 89 / 51 / 39 | 89 / 51 / 39 | 51 / 29 / 22 | 65 / 37 / 28 |
| Electrical Connection | ||||
| Plug Type | GA | GA | GA | GA |
| Straight Plug-In Connection | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O |
| Fixed Cable XXm | O | O | O | O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | - | - | - | - |
| High Pressure (dh) | X | X | X | X |
| Sensor Technology | ||||
| Rotary Encoder | - | - | - | - |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Housing | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | O | O | O | O |
| HSP 120 - 30000/9 | HSP 120 - 30000/11 | HSP 120 - 42000/11 | HSP 120 - 42000/6 | HSP 120 - 51000/11 | HSP 120 - 51000/6 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 30,000 | 30,000 | 42,000 | 42,000 | 51,000 | 51,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 45 | 40 | 40 | 30 | 30 |
| Tool Interface | ||||||
| Designation | HSK-C 40 | HSK-C 40 | HSK-C 32 | HSK-C 32 | HSK-C 25 | HSK-C 25 |
| Face Diameter W [mm] | 40 | 40 | 40 | 40 | 25 | 25 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 98 | 98 | 90 | 90 | 70 | 70 |
| Radial Stiffness Crad [N/µm] | 131 | 131 | 121 | 121 | 102 | 102 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 1,000 | 1,500 | 1,400 | 1,400 | 1,700 | 1,700 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 9 | 11 | 11 | 6 | 11 | 6 |
| Torque MS1 [Nm] | 5.73 | 5.84 | 3.5 | 3.18 | 3.5 | 3.18 |
| … at speed n[rpm] | 15,000 | 18,000 | 30,000 | 18,000 | 30,000 | 18,000 |
| Electricity IS1 [A] | 58 / 33 / 25 | 72 / 41 / 31 | 63 / 36 / 27 | 30 / 17 / 13 | 63 / 36 / 27 | 30 / 17 / 13 |
| Performance PS6-60% [kW] | 11 | 13 | 12 | 7 | 12 | 7 |
| Torque MS6-60% [Nm] | 7 | 6.9 | 3.82 | 3.71 | 3.82 | 3.71 |
| …at speed n[rpm] | 15,000 | 18,000 | 30,000 | 18,000 | 30,000 | 18,000 |
| Electricity IS6-60% [A] | 68 / 39 / 30 | 84 / 48 / 37 | 67 / 38 / 29 | 35 / 20 / 15 | 67 / 38 / 29 | 35 / 20 / 15 |
| Electrical Connection | ||||||
| Plug Type | MAC / GA | MAC / GA | MAC / GA | MAC / GA | MAC / GA | GA |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | - | - | - | - | - | - |
| High Pressure (dh) | X | X | X | X | X | X |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | X | X |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Housing | + | + | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |
| HSP 150 - 24000/14 | HSP 150 - 24000/18 | HSP 150 - 30000/14 | HSP 150 - 30000/18 | HSP 150 - 42000/9.5 | HSP 150 - 42000/14 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 24,000 | 24,000 | 30,000 | 30,000 | 42,000 | 42,000 |
| Bearing Diameter at the front W1 [mm] | 65 | 65 | 55 | 55 | 40 | 40 |
| Tool Interface | ||||||
| Designation | HSK-C 63 | HSK-C 63 | HSK-C 50 | HSK-C 50 | HSK-C 32 | HSK-C 32 |
| Face Diameter W [mm] | 63 | 63 | 50 | 50 | 32 | 32 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 130 | 130 | 111 | 111 | 90 | 90 |
| Radial Stiffness Crad [N/µm] | 196 | 196 | 177 | 177 | 147 | 147 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 800 | 800 | 1,000 | 1,000 | 1,400 | 1,400 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 14 | 18 | 14 | 18 | 9.5 | 14 |
| Torque MS1 [Nm] | 12.2 | 9.55 | 9.9 | 9.55 | 5.04 | 4.95 |
| … at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 18,000 | 27,000 |
| Electricity IS1 [A] | 65 / 37 / 28 | 86 / 49 / 37 | 63 / 36 / 27 | 86 / 49 / 37 | 47 / 27 / 21 | 86 / 49 / 37 |
| Performance PS6-60% [kW] | 17 | 23 | 16 | 23 | 11 | 16 |
| Torque MS6-60% [Nm] | 14.8 | 12.2 | 11.3 | 12.2 | 5.84 | 5.66 |
| …at speed n[rpm] | 11,000 | 18,000 | 13,500 | 18,000 | 18,000 | 27,000 |
| Electricity IS6-60% [A] | 79 / 45 / 34 | 110 / 63 / 48 | 70 / 40 / 30 | 110 / 63 / 48 | 54 / 31 / 24 | 102 / 58 / 44 |
| Electrical Connection | ||||||
| Plug Type | MAC / GA | MAC / GA | MAC / GA | MAC / GA | MAC / GA | MAC / GA |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | - | - | - | - | - | - |
| High Pressure (dh) | X | X | X | X | X | X |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | X | X |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Housing | + | + | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |
| HSP 170 - 18000/20 | HSP 170 - 18000/29 | HSP 170 - 24000/19 | HSP 170 - 24000/32 | HSP 170 - 30000/19 | HSP 170 - 30000/32 | |
|---|---|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||||
| Housing Ø A[mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Max. Speed nmax[min-1] | 18,000 | 18,000 | 24,000 | 24,000 | 30,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 70 | 70 | 65 | 65 | 55 | 55 |
| Tool Interface | ||||||
| Designation | HSK-C 63 | HSK-C 63 | HSK-C 63 | HSK-C 63 | HSK-C 50 | HSK-C 50 |
| Face Diameter W [mm] | 63 | 63 | 63 | 63 | 50 | 50 |
| Static Stiffness | ||||||
| Axial Stiffness Cax [N/µm] | 201 | 201 | 130 | 130 | 111 | 111 |
| Radial Stiffness Crad [N/µm] | 325 | 325 | 231 | 231 | 203 | 203 |
| Engine Design | ||||||
| Max. Frequency fmax [Hz] | 600 | 600 | 800 | 800 | 1,000 | 1,000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 20 | 29 | 19 | 32 | 19 | 32 |
| Torque MS1 [Nm] | 25.5 | 25.2 | 20.2 | 20.4 | 20.2 | 20.4 |
| … at speed n[rpm] | 7,500 | 11,000 | 9,000 | 15,000 | 9,000 | 15,000 |
| Electricity IS1 [A] | 89 / 51 / 39 | 117 / 67 / 51 | 82 / 47 / 36 | 140 / 80 / 61 | 82 / 47 / 36 | 140 / 80 / 61 |
| Performance PS6-60% [kW] | 23 | 34 | 21 | 35 | 21 | 35 |
| Torque MS6-60% [Nm] | 29.3 | 29.5 | 22.3 | 22.3 | 22.3 | 22.3 |
| …at speed n[rpm] | 7,500 | 11,000 | 9,000 | 15,000 | 9,000 | 15,000 |
| Electricity IS6-60% [A] | 102 / 58 / 44 | 137 / 78 / 59 | 93 / 53 / 40 | 151 / 86 / 65 | 93 / 53 / 40 | 151 / 86 / 65 |
| Electrical Connection | ||||||
| Plug Type | D350 / MAC / GA | D350 / MAC | MAC / GA | D350 / MAC | MAC / GA | D350 / MAC |
| Straight Plug-In Connection | + | + | + | + | + | + |
| Angle Plug-In Connection | O | O | O | O | O | O |
| Fixed Cable XXm | O | O | O | O | O | O |
| Coolant Through the Shaft | ||||||
| Low Pressure (du) | - | - | - | - | - | - |
| High Pressure (dh) | X | X | X | X | X | X |
| Sensor Technology | ||||||
| Rotary Encoder | X | X | X | X | X | X |
| Speed Sensor | + | + | + | + | + | + |
| Housing | ||||||
| Cylindrical Housing | + | + | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O | O | O |
| Block Housing | X | X | X | X | X | X |
| Air Seal | ||||||
| Air Seal | O | O | O | O | O | O |
| HSP 230 - 15000/25 | HSP 230 - 15000/42 | HSP 230 - 18000/18 | HSP 230 - 18000/45 | |
|---|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | ||||
| Housing Ø A[mm] | 230 | 230 | 230 | 230 |
| Max. Speed nmax[min-1] | 15,000 | 15,000 | 18,000 | 18,000 |
| Bearing Diameter at the front W1 [mm] | 90 | 90 | 70 | 70 |
| Tool Interface | ||||
| Designation | HSK-C 80 | HSK-C 80 | HSK-C 63 | HSK-C 63 |
| Face Diameter W [mm] | 80 | 80 | 63 | 63 |
| Static Stiffness | ||||
| Axial Stiffness Cax [N/µm] | 461 | 461 | 196 | 196 |
| Radial Stiffness Crad [N/µm] | 483 | 483 | 375 | 375 |
| Engine Design | ||||
| Max. Frequency fmax [Hz] | 500 | 500 | 600 | 600 |
| Inverter Rated Voltage U [V] | 200 / 350 | 200 / 350 | 200 / 350 | 200 / 350 |
| Performance PS1 [kW] | 25 | 42 | 18 | 45 |
| Torque MS1 [Nm] | 85.3 | 85.3 | 59.3 | 58.9 |
| … at speed n[rpm] | 2,800 | 4,700 | 2,900 | 7,300 |
| Electricity IS1 [A] | 121 / 69 | 168 / 96 | 100 / 57 | 172 / 98 |
| Performance PS6-60% [kW] | 28 | 47 | 20 | 50 |
| Torque MS6-60% [Nm] | 95 .5 | 95.5 | 65.9 | 65.4 |
| …at speed n[rpm] | 2,800 | 4,700 | 2,900 | 7,300 |
| Electricity IS6-60% [A] | 135 / 77 | 187 / 107 | 112 / 64 | 189 / 108 |
| Electrical Connection | ||||
| Plug Type | D350 / MAC | - / D350 | D350 / MAC | - / D350 |
| Straight Plug-In Connection | + | - / + | + | - / + |
| Angle Plug-In Connection | O | - / O | O | - / O |
| Fixed Cable XXm | O | + / O | O | + / O |
| Coolant Through the Shaft | ||||
| Low Pressure (du) | - | - | - | - |
| High Pressure (dh) | X | X | X | X |
| Sensor Technology | ||||
| Rotary Encoder | X | X | X | X |
| Speed Sensor | + | + | + | + |
| Housing | ||||
| Cylindrical Housing | + | + | + | + |
| Cylindrical Housing with Flange | O | O | O | O |
| Block Housing | X | X | X | X |
| Air Seal | ||||
| Air Seal | + | + | + | + |

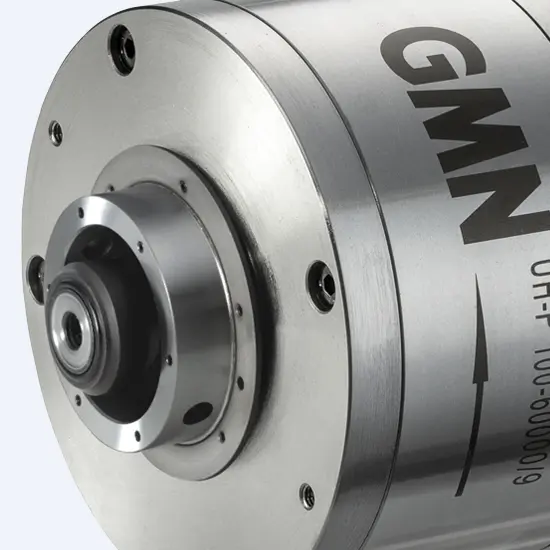

UH-P Series
GMN’s new UH Series spindle offers higher efficiency, lower vibration and noise, and larger bearing diameters. These high-speed models are equipped with the IDEA-4S interface, enabling continuous data capture via numerous sensors.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 75,000 rpm
Power: max. 32 kW (S1)
Torque: max. 36.8 Nm (S1)
Motor: Synchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
UH-P Series
GMN’s new UH Series spindle offers higher efficiency, lower vibration and noise, and larger bearing diameters. These high-speed models are equipped with the IDEA-4S interface, enabling continuous data capture via numerous sensors.
- Tool Change: Manual
Sleeve diameter: 100-170 mm
Speed: max. 75,000 rpm
Power: max. 32 kW (S1)
Torque: max. 36.8 Nm (S1)
Motor: Synchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
UH-P Series
** 200 V available upon request
| UH-P 100 - 75000/5 | UH-P 100 - 60000/9 | UH-P 100 - 45000/9 | |
|---|---|---|---|
| Technical Data | |||
| Housing Ø A[mm] | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 75,000 | 60,000 | 45,000 |
| Bearing Diameter at the front W1 [mm] | 30 | 35 | 45 |
| Tool Interface | |||
| Designation | HSK-C 25 | HDK-C 32 | HSK-C 40 |
| Face Diameter W [mm] | 25 | 32 | 40 |
| Engine Design | |||
| Motor | 200 V** / 400 V | 200 V** / 400 V | 400 V |
| Max. Frequency fmax [Hz] | 1,250 | 2,000 | 1,500 |
| Nominal Converter Voltage [V] | 200** / 400 | 200** / 400 | 400 |
| Power PS1 [kW] | 5 | 9 | 9 |
| Torque MS1 [Nm] | 0.76 | 2.4 | 3.2 |
| … at speed n[rpm] | 63,000 | 36,000 | 27,000 |
| Electricity IS1 [A] | 19** / 9.2 | 46** / 24 | 24 |
| Power PS6-60% [kW] | 5.8 | 10.3 | 10.3 |
| Torque MS6-60% [Nm] | 0.87 | 2.7 | 3.7 |
| …at speed n[rpm] | 63,000 | 36,000 | 27,000 |
| Electricity IS6-60% [k[A] | 22** / 11 | 54** / 28 | 27 |
| UH-P 120 - 75000/10 | UH-P 120 - 60000/8 | UH-P 120 - 60000/11 | UH-P 120 - 45000/10 | UH-P 120 - 30000/10 | |
|---|---|---|---|---|---|
| Technical Data | |||||
| Housing Ø A[mm] | 120 | 120 | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 75,000 | 60,000 | 60,000 | 45,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 30 | 35 | 35 | 45 | 55 |
| Tool Interface | |||||
| Designation | HSK-C 25 | HSK-C 32 | HSK-C 32 | HSK-C 40 | HSK-C 50 |
| Face Diameter W [mm] | 25 | 32 | 32 | 40 | 50 |
| Engine Design | |||||
| Motor | 200 V ** / 420 V | 200 V ** / 420 V | 200 V ** / 400 V | 200 V ** / 425 V | 200 V ** / 400 V |
| Max. Frequency fmax [Hz] | 1,250 | 1,000 | 2,000 | 1,500 | 1,000 |
| Nominal Converter Voltage [V] | 200** / 412 | 200** / 412 | 200** / 288 | 200** / 425 | 200** / 400 |
| Power PS1 [kW] | 10 | 8 | 11 | 10 | 10 |
| Torque MS1 [Nm] | 1.3 | 1.3 | 3.6 | 4.8 | 7.9 |
| … at speed n[rpm] | 75,000 | 60,000 | 29,000 | 19,500 | 12,000 |
| Electricity IS1 [A] | 39** / 16 | 38** / 16 | 76** / 49 | 52** / 26 | 54** / 27 |
| Power PS6-60% [kW] | 11.5 | 11.5 | 12.6 | 11.3 | 11.5 |
| Torque MS6-60% [Nm] | 1.5 | 1.5 | 4.2 | 5.5 | 9.1 |
| …at speed n[rpm] | 75,000 | 60,000 | 29,000 | 19,500 | 12,000 |
| Electricity IS6-60% [k[A] | 45** / 18 | 44** / 18 | 87** / 56 | 62** / 31 | 65** / 33 |
| UH-P 150 - 50000/18 | UH-P 150 - 40000/20 | UH-P 150 - 30000/25 | |
|---|---|---|---|
| Technical Data | |||
| Housing Ø A[mm] | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 50,000 | 40,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 55 | 65 |
| Tool Interface | |||
| Designation | HSK-C 40 | HSK-C 50 | HSK-C 63 |
| Face Diameter W [mm] | 40 | 53 | 63 |
| Engine Design | |||
| Motor | 200 V ** / 400 V | 400 V | 400 V |
| Max. Frequency fmax [Hz] | 834 | 1,334 | 1,000 |
| Nominal Converter Voltage [V] | 200** / 361 | 400 | 400 |
| Power PS1 [kW] | 18 | 20 | 25 |
| Torque MS1 [Nm] | 4 | 13.5 | 17 |
| … at speed n[rpm] | 43,000 | 14,000 | 14,000 |
| Electricity IS1 [A] | 73** / 36 | 72 | 78 |
| Power PS6-60% [kW] | 19.8 | 23 | 28.8 |
| Torque MS6-60% [Nm] | 4.4 | 15.5 | 19.6 |
| …at speed n[rpm] | 43,000 | 14,000 | 14,000 |
| Electricity IS6-60% [k[A] | 80** / 40 | 88 | 98 |
| UH-P 170 - 40000/32 | UH-P 170 - 30000/17 | UH-P 170 - 20000/17 | |
|---|---|---|---|
| Technical Data | |||
| Housing Ø A[mm] | 170 | 170 | 170 |
| Max. Speed nmax[min-1] | 40,000 | 30,000 | 20,000 |
| Bearing Diameter at the front W1 [mm] | 55 | 65 | 70 |
| Tool Interface | |||
| Designation | HSK-C 50 | HSK-C 63 | HSK-C 63 |
| Face Diameter W [mm] | 50 | 63 | 63 |
| Engine Design | |||
| Motor | 200 V ** / 500 V | 450 V | 400 V |
| Max. Frequency fmax [Hz] | 1,334 | 1,000 | 667 |
| Nominal Converter Voltage [V] | 200** / 496 | 403 | 400 |
| Power PS1 [kW] | 32 | 17 | 17 |
| Torque MS1 [Nm] | 16.1 | 23.1 | 36.8 |
| … at speed n[rpm] | 19,000 | 7,000 | 4,410 |
| Electricity IS1 [A] | 167** / 51 | 44 | 30 |
| Power PS6-60% [kW] | 36.8 | 19.6 | 19.6 |
| Torque MS6-60% [Nm] | 18.5 | 26.6 | 42.3 |
| …at speed n[rpm] | 19,000 | 7,000 | 4,410 |
| Electricity IS6-60% [k[A] | 192** / 64 | 54 | 35 |
HSP…G Series
High-speed spindles for grinding, milling, and drilling applications. These spindle series come with permanent greased bearings and an air seal.
- Tool Change: Manual
Sleeve diameter: 100-230 mm
Speed: max. 30,000 rpm
Power: max. 25 kW (S1)
Torque: max. 85.3 Nm (S1)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HSP…G Series
High-speed spindles for grinding, milling, and drilling applications. These spindle series come with permanent greased bearings and an air seal.
- Tool Change: Manual
Sleeve diameter: 100-230 mm
Speed: max. 30,000 rpm
Power: max. 25 kW (S1)
Torque: max. 85.3 Nm (S1)
Motor: Asynchronous
Tool Interface: HSK-C
- Lubrication: Oil-Air
HSP...G Series
+ Standard | O Optional | X Upon Request
| HSP 100g - 21000/3 | HSP 100g - 27000/3 | HSP 100g - 30000/3 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 100 | 100 | 100 |
| Max. Speed nmax[min-1] | 21,000 | 27,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 35 | 30 |
| Tool Interface | |||
| Designation | HSK-C 40 | HSK-C 32 | HSK-C 25 |
| Face Diameter W [mm] | 40 | 32 | 25 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 91 | 69 | 63 |
| Radial Stiffness Crad [N/µm] | 80 | 81 | 77 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 700 | 900 | 1,000 |
| Inverter Rated Voltage U [V] | 200 / 350 | 200 / 350 | 200 / 350 |
| Performance PS1 [kW] | 3 | 3 | 3 |
| Torque MS1 [Nm] | 2.39 | 1.36 | 1.36 |
| … at speed n[rpm] | 12,000 | 21,000 | 21,000 |
| Electricity IS1 [A] | 18 / 10 | 18 / 10 | 18 / 10 |
| Performance PS6-60% [kW] | 4.5 | 4 | 4 |
| Torque MS6-60% [Nm] | 2.86 | 1.59 | 1.59 |
| …at speed n[rpm] | 15,000 | 24,000 | 24,000 |
| Electricity IS6-60% [A] | 21 / 12 | 21 / 12 | 21 / 12 |
| Electrical Connection | |||
| Plug Type | GA | GA | GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | O | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | - | - | - |
| High Pressure (dh) | X | X | X |
| Sensor Technology | |||
| Rotary Encoder | - | - | - |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | + | + | + |
| HSP 120g - 21000/9 | HSP 120g - 24000/6 | HSP 120g - 30000/6 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 120 | 120 | 120 |
| Max. Speed nmax[min-1] | 21,000 | 24,000 | 30,000 |
| Bearing Diameter at the front W1 [mm] | 45 | 40 | 30 |
| Tool Interface | |||
| Designation | HSK-C 40 | HSK-C 32 | HSK-C 25 |
| Face Diameter W [mm] | 40 | 32 | 25 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 98 | 90 | 70 |
| Radial Stiffness Crad [N/µm] | 131 | 121 | 102 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 1,050 | 800 | 1,000 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 350 / 460 | 350 / 460 |
| Performance PS1 [kW] | 9 | 6 | 6 |
| Torque MS1 [Nm] | 5.73 | 3.18 | 3.18 |
| … at speed n[rpm] | 15,000 | 18,000 | 18,000 |
| Electricity IS1 [A] | 70 / 40 / 30 | 17 / 13 | 17 / 13 |
| Performance PS6-60% [kW] | 13 | 7 | 7 |
| Torque MS6-60% [Nm] | 6.9 | 3.71 | 3.71 |
| …at speed n[rpm] | 18,000 | 18,000 | 18,000 |
| Electricity IS6-60% [A] | 84 / 48 / 37 | 20 / 15 | 20 / 15 |
| Electrical Connection | |||
| Plug Type | MAC / GA | GA | GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | O | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | - | - | - |
| High Pressure (dh) | X | X | X |
| Sensor Technology | |||
| Rotary Encoder | - | - | - |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | + | + | + |
| HSP 150g - 15000/14 | HSP 150g - 18000/14 | HSP 150g - 24000/9.5 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 150 | 150 | 150 |
| Max. Speed nmax[min-1] | 15,000 | 18,000 | 24,000 |
| Bearing Diameter at the front W1 [mm] | 65 | 55 | 40 |
| Tool Interface | |||
| Designation | HSK-C 63 | HSK-C 50 | HSK-C 32 |
| Face Diameter W [mm] | 63 | 50 | 32 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 130 | 111 | 90 |
| Radial Stiffness Crad [N/µm] | 147 | 177 | 147 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 500 | 600 | 800 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 14 | 14 | 9.5 |
| Torque MS1 [Nm] | 12.2 | 9.9 | 5.04 |
| … at speed n[rpm] | 11,000 | 13,500 | 18,000 |
| Electricity IS1 [A] | 65 / 37 / 28 | 63 / 36 / 27 | 47 / 27 / 21 |
| Performance PS6-60% [kW] | 17 | 16 | 11 |
| Torque MS6-60% [Nm] | 14.8 | 11.3 | 5.84 |
| …at speed n[rpm] | 11,000 | 13,500 | 18,000 |
| Electricity IS6-60% [A] | 79 / 45 / 34 | 70 / 40 / 30 | 54 / 31 / 24 |
| Electrical Connection | |||
| Plug Type | MAC / GA | MAC / GA | MAC / GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | O | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | - | - | - |
| High Pressure (dh) | X | X | X |
| Sensor Technology | |||
| Rotary Encoder | X | X | X |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | + | + | + |
| HSP 170g - 12000/20 | HSP 170g - 15000/19 | HSP 170g - 18000/19 | |
|---|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download | Click Here to Download |
| Technical Data | |||
| Housing Ø A[mm] | 170 | 170 | 170 |
| Max. Speed nmax[min-1] | 12,000 | 15,000 | 18,000 |
| Bearing Diameter at the front W1 [mm] | 70 | 65 | 55 |
| Tool Interface | |||
| Designation | HSK-C 63 | HSK-C 63 | HSK-C 50 |
| Face Diameter W [mm] | 63 | 63 | 50 |
| Static Stiffness | |||
| Axial Stiffness Cax [N/µm] | 135 | 130 | 111 |
| Radial Stiffness Crad [N/µm] | 262 | 231 | 203 |
| Engine Design | |||
| Max. Frequency fmax [Hz] | 400 | 500 | 600 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 460 / 200 / 350 | 200 / 350 / 460 |
| Performance PS1 [kW] | 20 | 19 | 19 |
| Torque MS1 [Nm] | 25.5 | 20.2 | 20.2 |
| … at speed n[rpm] | 7,500 | 9,000 | 9,000 |
| Electricity IS1 [A] | 89 / 51 39 | 36 / 82 / 47 | 82 / 47 / 36 |
| Performance PS6-60% [kW] | 23 | 22 | 22 |
| Torque MS6-60% [Nm] | 29.3 | 21 | 21 |
| …at speed n[rpm] | 7,500 | 10,000 | 10,000 |
| Electricity IS6-60% [A] | 102 / 58 / 44 | 40 / 93 / 53 | 93 / 53 / 40 |
| Electrical Connection | |||
| Plug Type | D350 / MAC / GA | GA / MAC | MAC / GA |
| Straight Plug-In Connection | + | + | + |
| Angle Plug-In Connection | O | O | O |
| Fixed Cable XXm | O | O | O |
| Coolant Through the Shaft | |||
| Low Pressure (du) | - | - | - |
| High Pressure (dh) | X | X | X |
| Sensor Technology | |||
| Rotary Encoder | X | X | X |
| Speed Sensor | + | + | + |
| Housing | |||
| Cylindrical Housing | + | + | + |
| Cylindrical Housing with Flange | O | O | O |
| Block Housing | X | X | X |
| Air Seal | |||
| Air Seal | + | + | + |
| HSP 230g - 10000/25 | HSP 230g - 12000/18 | |
|---|---|---|
| Data Sheets | Click Here to Download | Click Here to Download |
| Technical Data | ||
| Housing Ø A[mm] | 230 | 230 |
| Max. Speed nmax[min-1] | 10,000 | 12,000 |
| Bearing Diameter at the front W1 [mm] | 90 | 70 |
| Tool Interface | ||
| Designation | HSK-C 80 | HSK-C 63 |
| Face Diameter W [mm] | 80 | 63 |
| Static Stiffness | ||
| Axial Stiffness Cax [N/µm] | 461 | 196 |
| Radial Stiffness Crad [N/µm] | 483 | 375 |
| Engine Design | ||
| Max. Frequency fmax [Hz] | 333 | 400 |
| Inverter Rated Voltage U [V] | 200 / 350 / 460 | 200 / 350 / 460 |
| Performance PS1 [kW] | 25 | 18 |
| Torque MS1 [Nm] | 85.3 | 59.3 |
| … at speed n[rpm] | 2,800 | 2,900 |
| Electricity IS1 [A] | 121 / 69 / 53 | 100 / 57 / 43 |
| Performance PS6-60% [kW] | 28 | 20 |
| Torque MS6-60% [Nm] | 95.5 | 65.9 |
| …at speed n[rpm] | 2,800 | 2,900 |
| Electricity IS6-60% [A] | 187 / 107 / 81 | 112 / 64 / 49 |
| Electrical Connection | ||
| Plug Type | D350 / MAC | D350 / MAC / GA |
| Straight Plug-In Connection | + | + |
| Angle Plug-In Connection | O | O |
| Fixed Cable XXm | O | O |
| Coolant Through the Shaft | ||
| Low Pressure (du) | - | - |
| High Pressure (dh) | X | X |
| Sensor Technology | ||
| Rotary Encoder | X | X |
| Speed Sensor | + | + |
| Housing | ||
| Cylindrical Housing | + | + |
| Cylindrical Housing with Flange | O | O |
| Block Housing | X | X |
| Air Seal | ||
| Air Seal | + | + |
TSEV Series
Tool spindles with attached air-cooled motors and external Taper. Permanent grease lubrication and air-cooled motors make these spindles a great solution for simple grinding machines.
Tool Change: Manual or Automatic
Sleeve diameter: 50-160 mm
Speed: max. 24,000 rpm
Power: max. 11 kW (S1)
Torque: max. Nm (S1)
Motor: Asynchronous
Tool Interface: GMN external taper
Lubrication: Permanent Grease
TSEV Series
Tool spindles with attached air-cooled motors and external Taper. Permanent grease lubrication and air-cooled motors make these spindles a great solution for simple grinding machines.
Tool Change: Manual or Automatic
Sleeve diameter: 50-160 mm
Speed: max. 24,000 rpm
Power: max. 11 kW (S1)
Torque: max. Nm (S1)
Motor: Asynchronous
Tool Interface: GMN external taper
Lubrication: Permanent Grease
Please note that the TSEV series for air cooling was discontinued in 2017, but these spindles can be offered for liquid cooling. Contact us for more information.
Please note that the TSEV series for air cooling was discontinued in 2017, but these spindles can be offered for liquid cooling. Contact us for more information.
Looking for Other Manual Spindles?
Explore our externally driven spindles or all GMN USA
spindle options and find the right solution for your application.
Explore our externally driven spindles or all GMN USA spindle options and find the right solution for your application.
