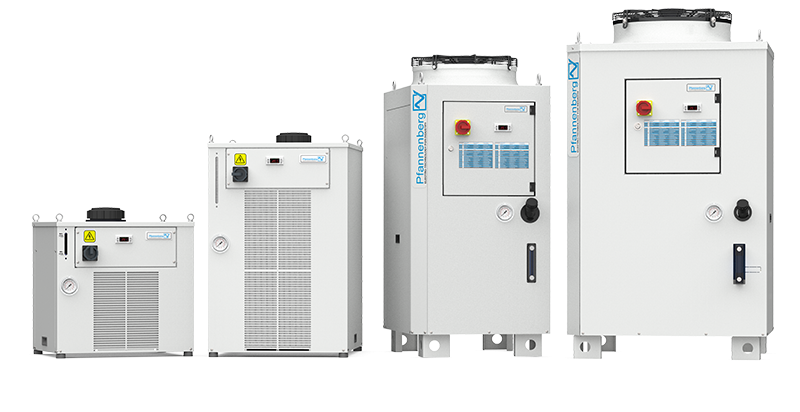

![Industrial chillers at GMN USA](https://gmnusa.com/wp-content/uploads/2024/05/GMNS2A1.png)
Common Applications of Industrial Chillers for CNC Machining
Common Applications of Industrial Chillers for CNC Machining
In the exciting world of precision manufacturing, where accuracy is paramount, chillers emerge as discreet yet indispensable heroes. At the core of CNC machine operations lies the critical importance of industrial chillers. These cooling systems play a vital role in maintaining optimal temperatures during machining, safeguarding the integrity of tools and the quality of produced parts. From efficiently removing heat generated by machinery to extending tool life, chillers stand as pillars of efficiency and quality in the manufacturing process.
However, when it comes to multi axis CNC machines, the importance of industrial chillers become even more significant. These machines, renowned for their ability to produce small and complex components with extraordinary precision, require specialized focus on thermal control. Chillers are the backbone that upholds precision excellence and ensure all moving parts, like the spindle, work in harmony. By providing consistent cooling, these systems ensure that machines operate under optimal conditions, enabling smooth machine operations and exceptional results.
Chillers: Key Component in Manufacturing and CNC
The importance of chillers in the manufacturing industry, especially for equipment like CNC machines, lies in their ability to maintain controlled and stable temperature conditions. In the case of CNC machines, where precision and consistency are critical, water chillers play a fundamental role in preventing tool and part overheating, ensuring the quality and precision of manufactured products. Chillers stand out as cooling systems that offer a centralized and cost-effective solution, optimally meeting the demand for precise temperature control and consistent reliability in the industry. They operate seamlessly, year-round, ensuring uninterrupted performance 24 hours a day, 365 days a year. These systems are designed with a compact and easy-to-maintain approach, while also meeting global standards thanks to their flexibility in certifications. Maintaining optimal operating conditions help prolong the lifespan of tools and enhances the overall efficiency of the manufacturing process. Moreover, detailed breakdown is presented of why chillers are essential for CNC machines.
Impact on Precision and Quality of Machining
The utilization of Computer Numerical Control (CNC) systems allows for the programming of chiller operations with extreme precision, eliminating human errors and ensuring the repeatability of cooling processes. Feedback and correction systems constantly monitor the chiller’s performance, enabling real-time adjustments to maintain precision throughout the cooling process. Additionally, the design and structure of the chiller, combined with the use of high-quality tools, ensure precise execution of cooling operations. Finally, advanced programming software enables the optimization of cooling parameters and the generation of highly accurate cooling trajectories, thereby contributing to the quality and precision of the chiller’s cooling process. Together, these features and technologies ensure that the chiller achieves exceptional levels of precision and quality in its operation.
Also, the precision and quality of machined parts are directly influenced by temperature variations within the CNC machine. Chillers help mitigate the effects of thermal expansion and contraction, which can cause deviations from desired specifications. By keeping temperatures stable, chillers contribute to achieving tight tolerances and high-quality surface finishes in machined components.
Temperature Control
Temperature control is crucial in CNC machining, with water chillers playing a pivotal role in achieving precise and consistent temperature management. Moving parts generate heat and can cause machine failure. For example, a spindle is a vital part that is used to hold and rotate tools in place for cutting, shaping, or drilling. When a spindle rotates, it generates heat. As the heat increases, it effects the whole CNC machine. Chillers dissipate heat generated during machining, maintaining optimal temperatures, and minimizing thermal expansion effects on workpieces. Chillers achieve this through the circulation of liquid cooling, which absorbs heat from the machining environment and effectively cools surrounding components. The efficiency of this heat transfer process is crucial for precise temperature control, influenced by factors such as refrigerant flow rate, heat exchange component surface area, and material thermal conductivity. Advanced temperature control systems, including controllers and feedback mechanisms, maintain temperature stability within tight tolerances. Even minor deviations from optimal temperature can significantly impact part quality and dimensional accuracy, emphasizing the importance of meticulous chiller system design and calibration. By effectively managing heat generation and dissipation, chillers contribute to machining process stability, resulting in higher precision and quality finished parts.
Industrial chillers optimize the performance of CNC machines across various dimensions, offering benefits that extend far beyond mere temperature control. Here’s how chillers contribute to the enhancement of CNC machine operations.
Enhancing CNC Machine Performance with Chillers
Prolonged Lifespan of Machine Component
CNC machines consist of multiple components susceptible to wear, such as motors, bearings, spindles, and cutting tools. Excessive heat generated during machining accelerates this wear and damage. However, chillers effectively dissipate heat, mitigating thermal stress on machine components and thereby prolonging their lifespan. This not only reduces maintenance costs but also minimizes downtime, ensuring uninterrupted productivity.
Increased Productivity and Improved Machining Speeds
Industrial chillers are instrumental in maintaining stable temperatures within CNC machines, mitigating thermal issues that can disrupt operations. This translates to higher uptime and increased productivity as machines experience fewer interruptions. Moreover, the consistent temperatures provided by chillers enable CNC machines to operate at optimal speeds without compromising part quality. This leads to faster machine cycles and shorter lead times, enhancing overall efficiency.
Industrial Chillers in Multi Axis CNC Machines.
Multi axis CNC machines stand out for their remarkable precision and outstanding performance in the manufacturing industry. These machines are known for their ability to produce small and complex parts with extremely tight tolerances. The reputation of multi axis CNC machines is due to their innovative design and focus on absolute precision in every step of the machining process.
These chillers are designed specifically crafted to fulfill the distinct requirements of CNC machines, delivering accurate and dependable cooling to uphold consistent temperatures during machining processes. By utilizing chillers specifically designed for these machines, manufacturers can ensure optimal performance and extended lifespan of their equipment.
The advantages of using appropriate water chillers for multi axis CNC machines are significant. In addition to ensuring the accuracy and quality of machined parts, these chillers help maximize the overall performance of the machines and minimize the risk of unplanned downtime due to temperature-related issues. By maintaining controlled and stable temperature conditions, chillers contribute to increased operational efficiency and more cost-effective production in today’s precision manufacturing environment.
We invite you to explore options of industrial chillers designed for your specific needs and ensure to maintain them properly to guarantee optimal performance of your CNC equipment. Investing in quality chillers is essential to safeguard your manufacturing operations and maximize the efficiency of your machining processes.
